Shipping Container Roof Plans

When planning to install a roof for your shipping container, reviewing our Shipping Container Roof Plans is crucial to ensure a smooth and successful project. Using an Archcore Roof System, your shipping container roof plans will be engineered to meet and exceed your counties building code requirements while providing exceptional security using thick heavy gauge steel.

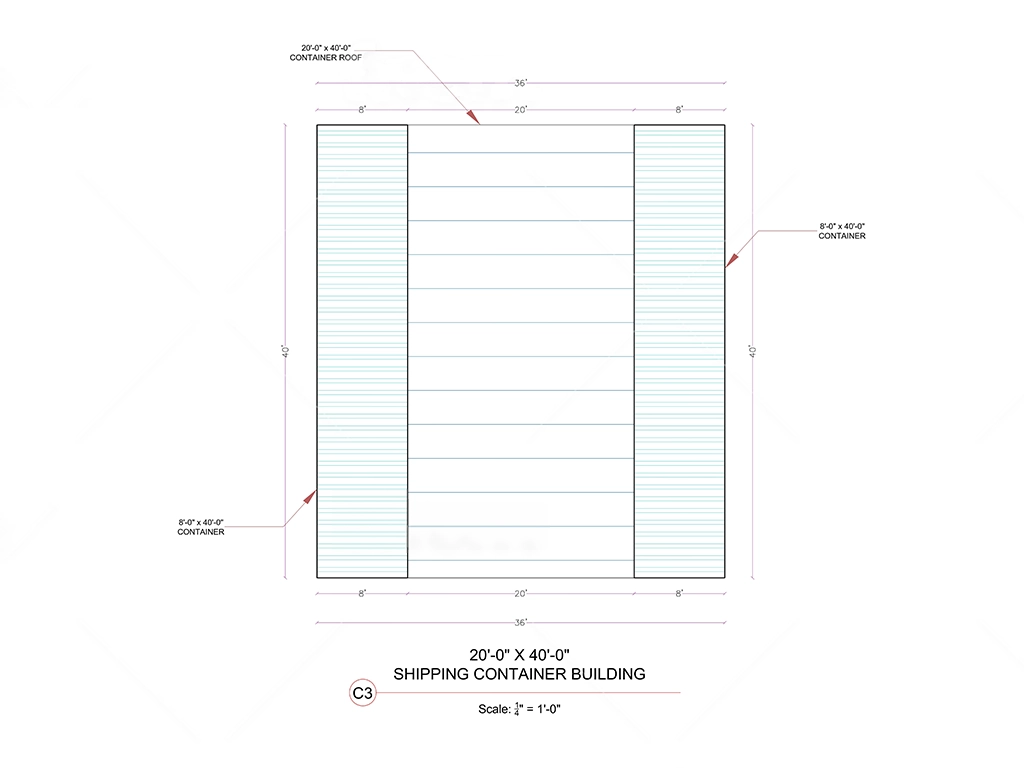

20x40 Shipping Container Building
Container Roof Plans

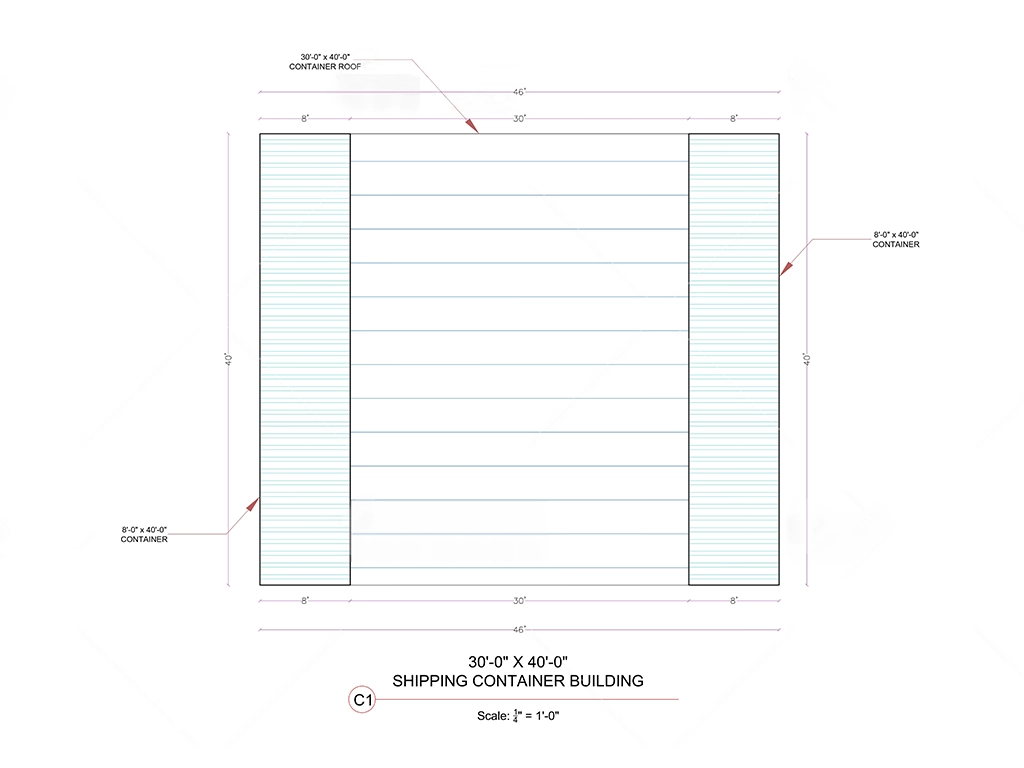

30x40 Shipping Container Building
Container Roof Plans

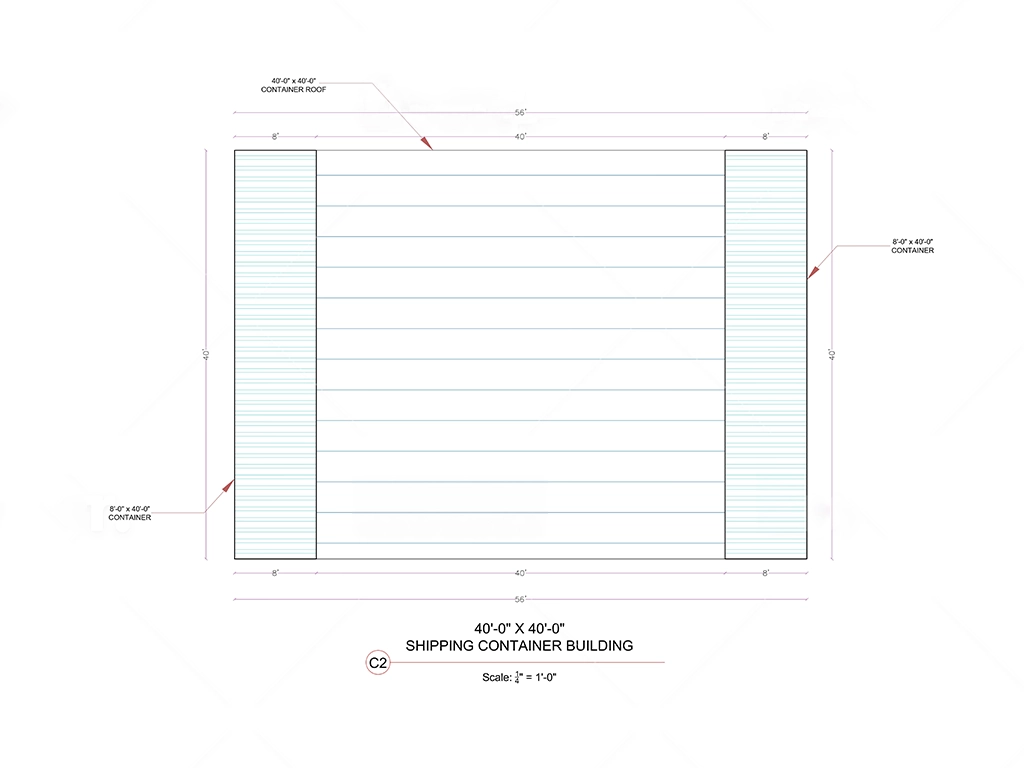

40x40 Shipping Container Building

Why Are Shipping Container Roof Plans Important?

A well-thought-out roof plan is the backbone of any successful container construction project. The design of your roof plan will depend on the size of your container, the steel gauge used, and any custom modifications. Understanding the preparatory steps involved ensures that your project is done right the first time!

Key Considerations for Your Container Roof Plans

  • Roof Size and Steel Gauge: The specifications of your roof will be determined by the dimensions of your shipping container, building code requirements, and the gauge of steel used. We provide a variety of shipping container roof plans to fit a wide range of container sizes, configurations and applications.
  • Custom Options: We offer customizable roof plans for customers who require special features like extended front and back walls, steel-framed openings for garage doors, gable vents and additional storage space above the containers.

How to Install a Container Roof: Step-by-Step

Installing a roof on your shipping container can be straightforward, but it does require careful planning and the right approach. Here’s a breakdown of the installation process:

  1. Planning and Preparation: Before beginning, ensure that the site is ready and level. This will help the installation process go smoothly.
  2. Tools and Equipment: While basic tools such as ladders, ropes, and hand tools will suffice for most installations, a small team of 3–5 people can complete the roof installation within a few days. For larger or more complex roofs, renting a scissor lift and additional equipment may be necessary.
  3. Step-by-Step Installation: Our shipping container roof plans include detailed instructions on erecting your roof structure, whether you’re installing a simple Quonset roof or a more complex custom design. These plans outline everything from the overall dimensions to the installation of walls and roof arches.
Step-by-Step Installation

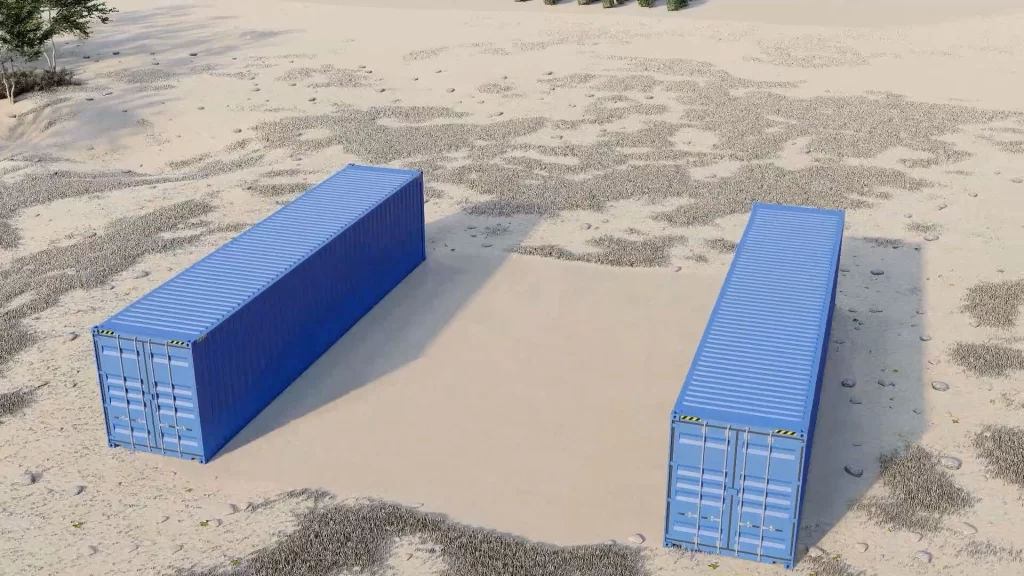

Set Your Containers in Place
Step-by-Step Installation

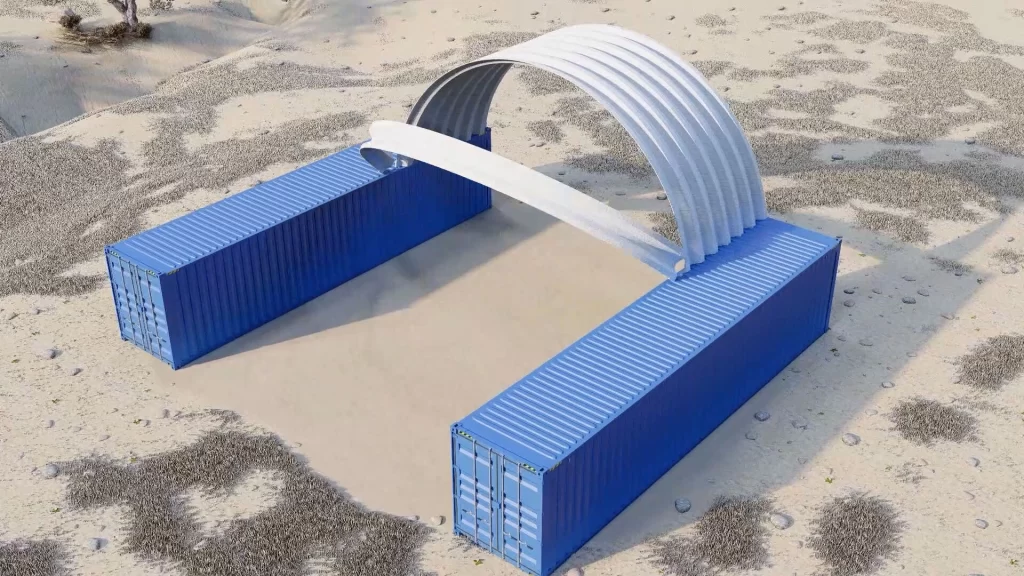

Bolt and Raise the Arches
Step-by-Step Installation

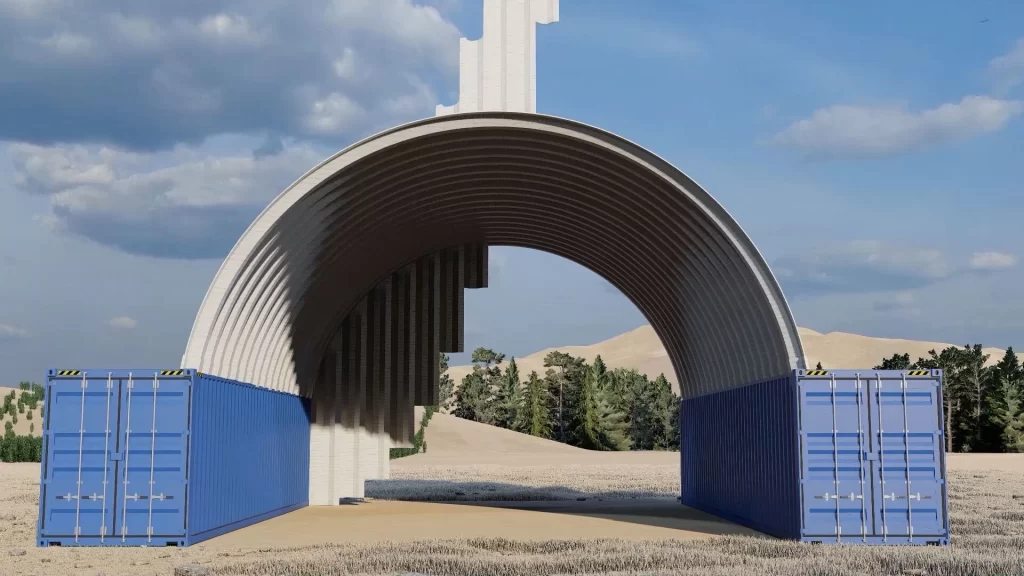

Install Extended Rear Wall
Attach Inner Curved Brackets
Step-by-Step Installation
Install Extended Front Wall
Step-by-Step Installation

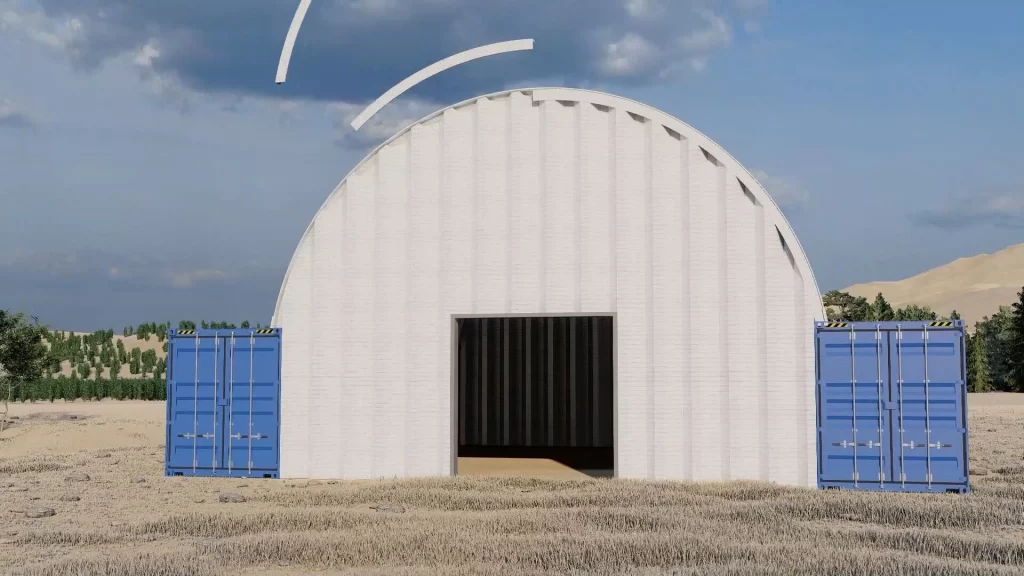

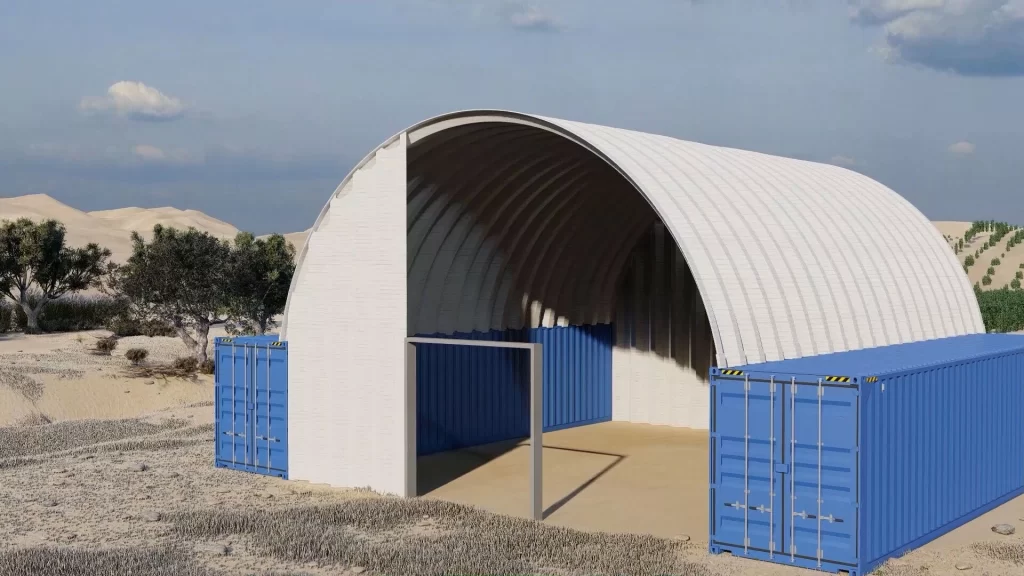

Install Steel Framed Opening
Step-by-Step Installation

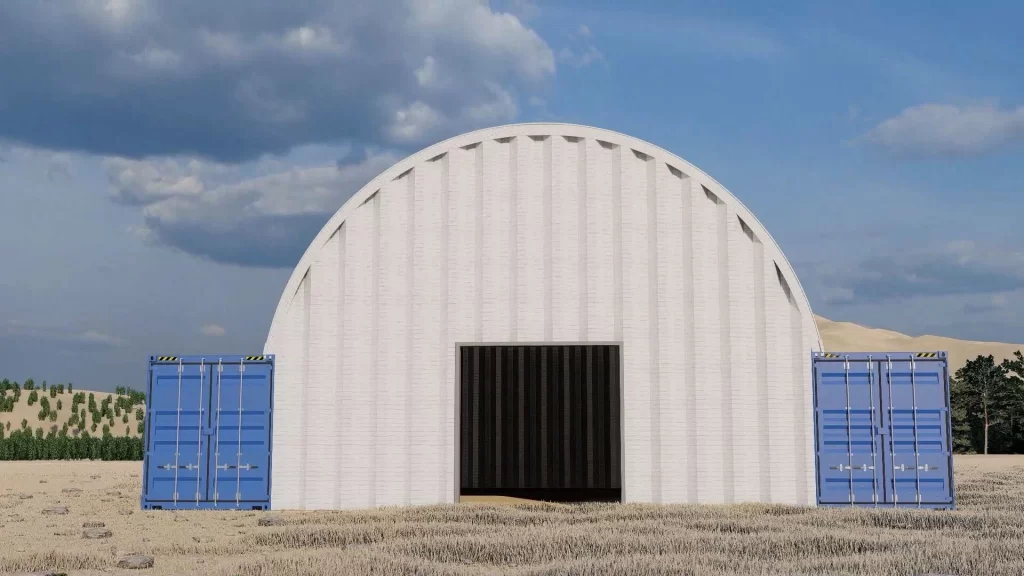

Container Roof Complete

Where Should You Attach the Container Roof?

One common question we receive is about where to attach the roof to the shipping container. You have several options, depending on your specific needs:

Inside Mount - Single Container Roof Kit
Inside Edge Attachment

This is the most common and standard option, maximizing interior space between containers while providing a secure connection.

Outside Mount
Outside Edge Attachment

If you want to create additional storage space above the container, this attachment allows you to cover the entire container while gaining extra storage height.

Combination Attachment

For those who need the benefits of both inside and outside edge attachment, a hybrid approach is possible. This gives you flexibility and added space while maintaining structural integrity.

What Are Shipping Container Roofs Made Of?

Our shipping container roofs are made from 100% American steel, sourced from the USA. The steel arches come in gauges ranging from 14 to 22, ensuring strength and durability. The material is coated with Galvalume, plus a high-quality blend of aluminum, zinc, and silicon that enhances corrosion resistance. This combination of materials ensures that your shipping container roof is both durable and long-lasting.

Can I Customize My Shipping Container Roof & Plans?

Yes, shipping container roof plans can be customized to meet your specific needs. Many customers start with a basic kit and later return to add features such as:

  • Extended walls
  • Turbine vents
  • Skylights
  • Additional partitions for interior spaces



Our versatile arch building design allows for easy customization and expansion, making it a great option for those with evolving needs. If your project requires more time for site preparation, our customer service team can coordinate a later delivery to accommodate your timeline.

Insulating Your Shipping Container Roof

Insulation is an important consideration for many shipping container roof projects, especially if you plan to use the space for storage or as a living area. While some customers prefer spray foam insulation, traditional fiberglass insulation is still a popular choice. It can be easily applied to the roof using pins and clips, which we can provide as part of our kits.

Get Your Custom Shipping Container Roof Plans Today

Whether you are constructing a storage shed, workshop, or living space, having the right shipping container roof plans is essential to a successful project. Archcore Roof Systems offers high-quality, customizable roof kits and detailed plans that simplify installation and provide long-lasting durability.

Ready to get started? Contact us today to learn more about our shipping container roof plans and start your container construction project the right way!
